Coating Thickness Gauge Digital Paint Meter 0~1750um F/NF Detection V288
Coating Thickness Gauge Digital Paint Meter 0~1750um F/NF Detection V288

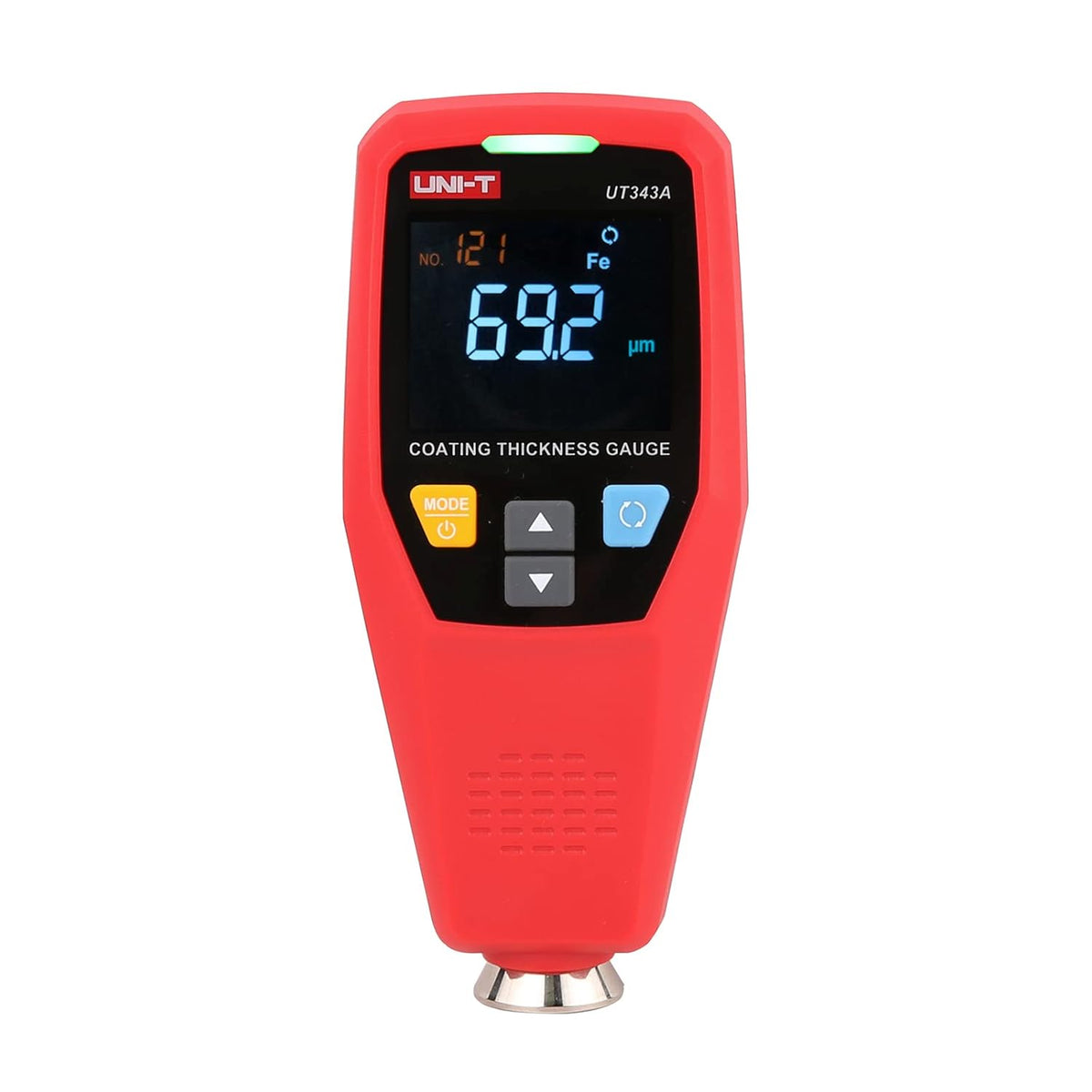

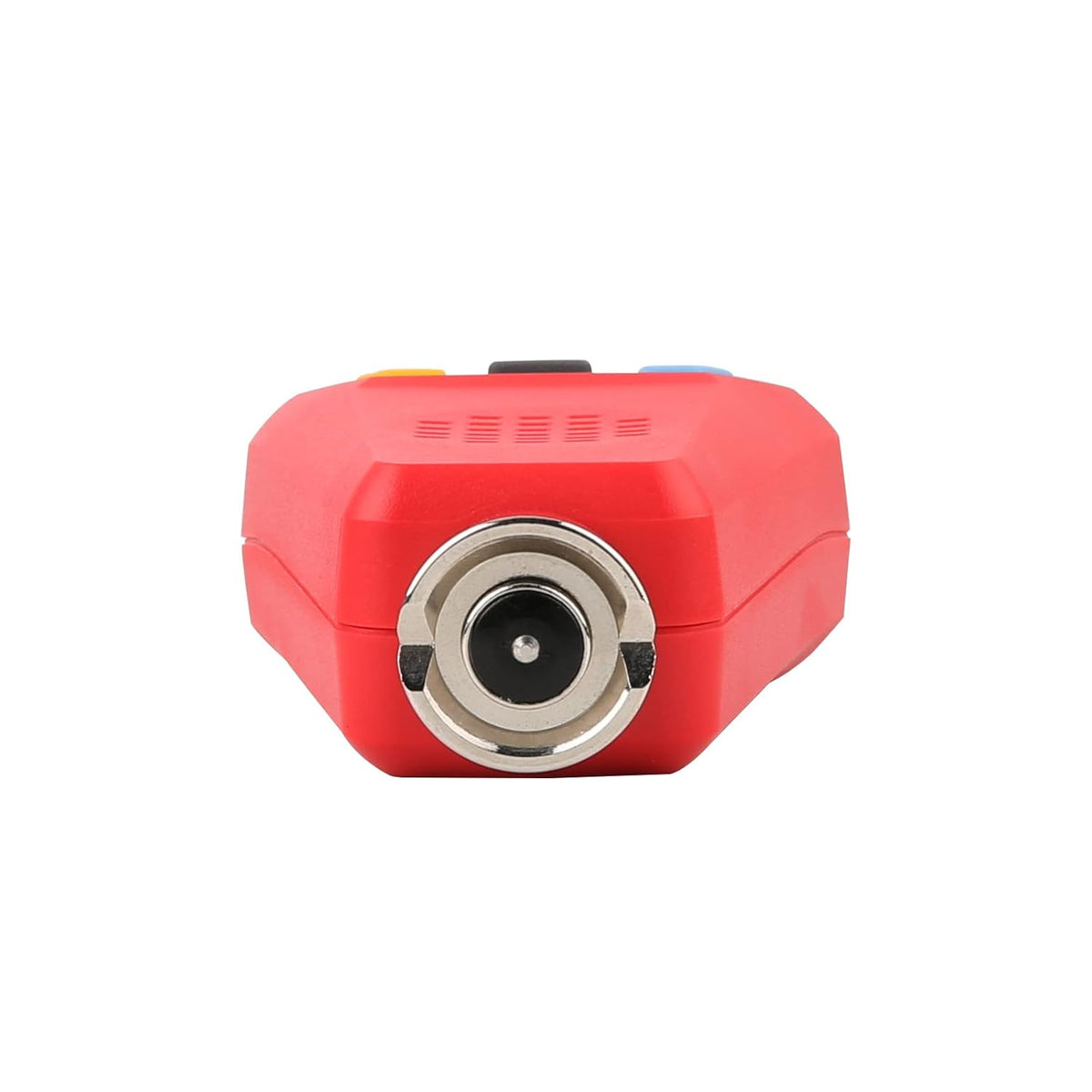

Measure coating thickness on ferrous and non-ferrous materials. With the dynamic design of the measuring sensor, UT343A thickness gauge accurately measures on surfaces of any shape (concave, rough, convex, etc.). Resolution: 0.1um (0~99.9um); 1um (100~1750um).
Unique quick test feature. Users can set thickness range and, with the help of 3-color LED and audio alarm to quickly determine whether the coating being tested falls within the preset range. Raise work efficiency. Measuring range: 0~1750um. Accuracy: ±(1+3%H)um.
Large screen display. EBTN display. Not only all values are in large print, but also the screen is manual rotatable for direct reading no matter how the device is set up. It’s all about improving user experience and usability of the device.

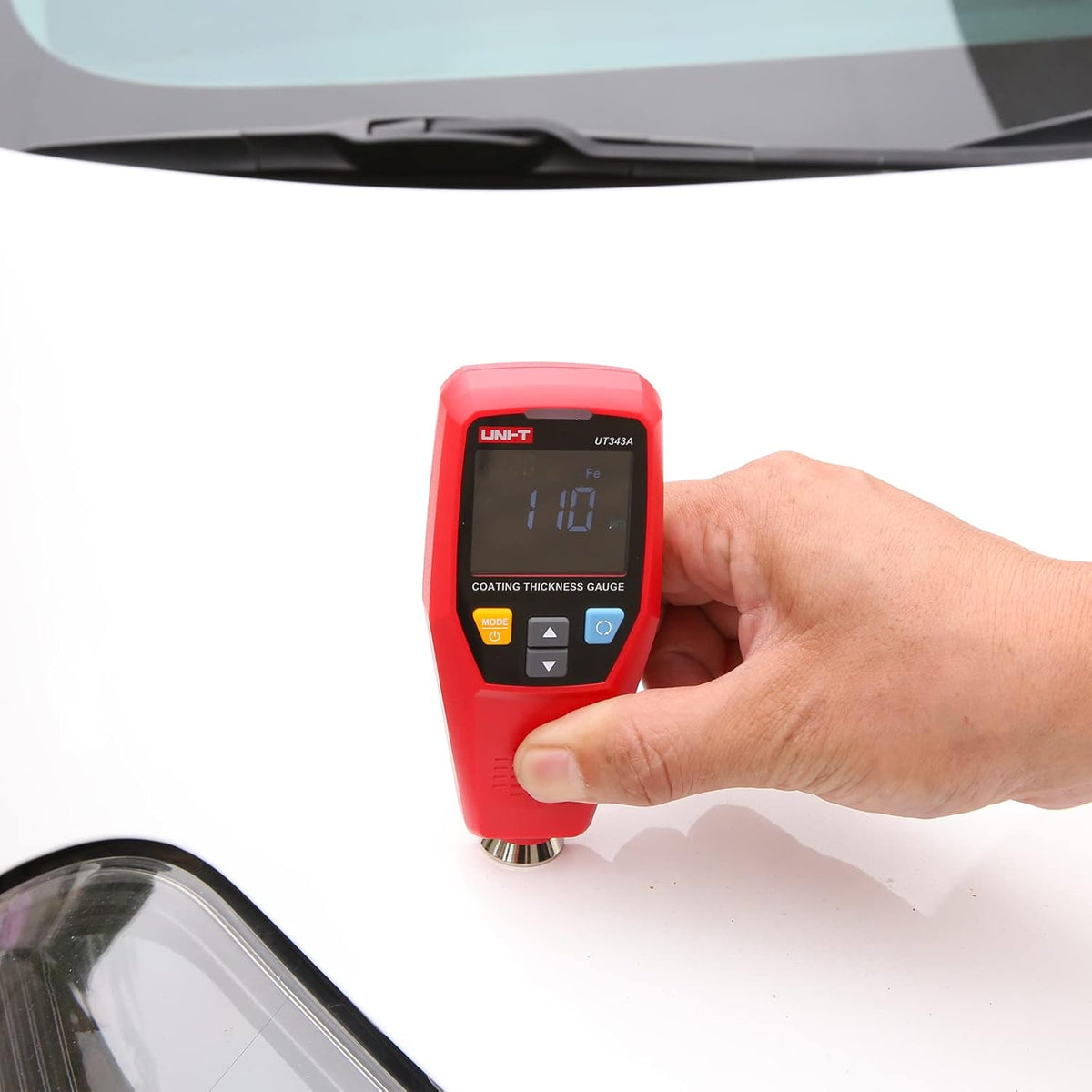

2 measurement methods. Single/Continuous. Measurement mode: Max/Min/Avg. Widely used in automotive, car sales, manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, and more.
UNI-T WARRANTY – A trouble-free experience with 100% 18-MONTH WARRANTY and 100% MONEY BACK GUARANTEE by UNI-T Direct!
UNI-T is your testing specialist.
Since 1988, Uni-Trend Technology (China) Co., Ltd has been the developer, manufacturer and marketer of reliable testing, measuring and inspecting products to over 100 countries and regions globally.

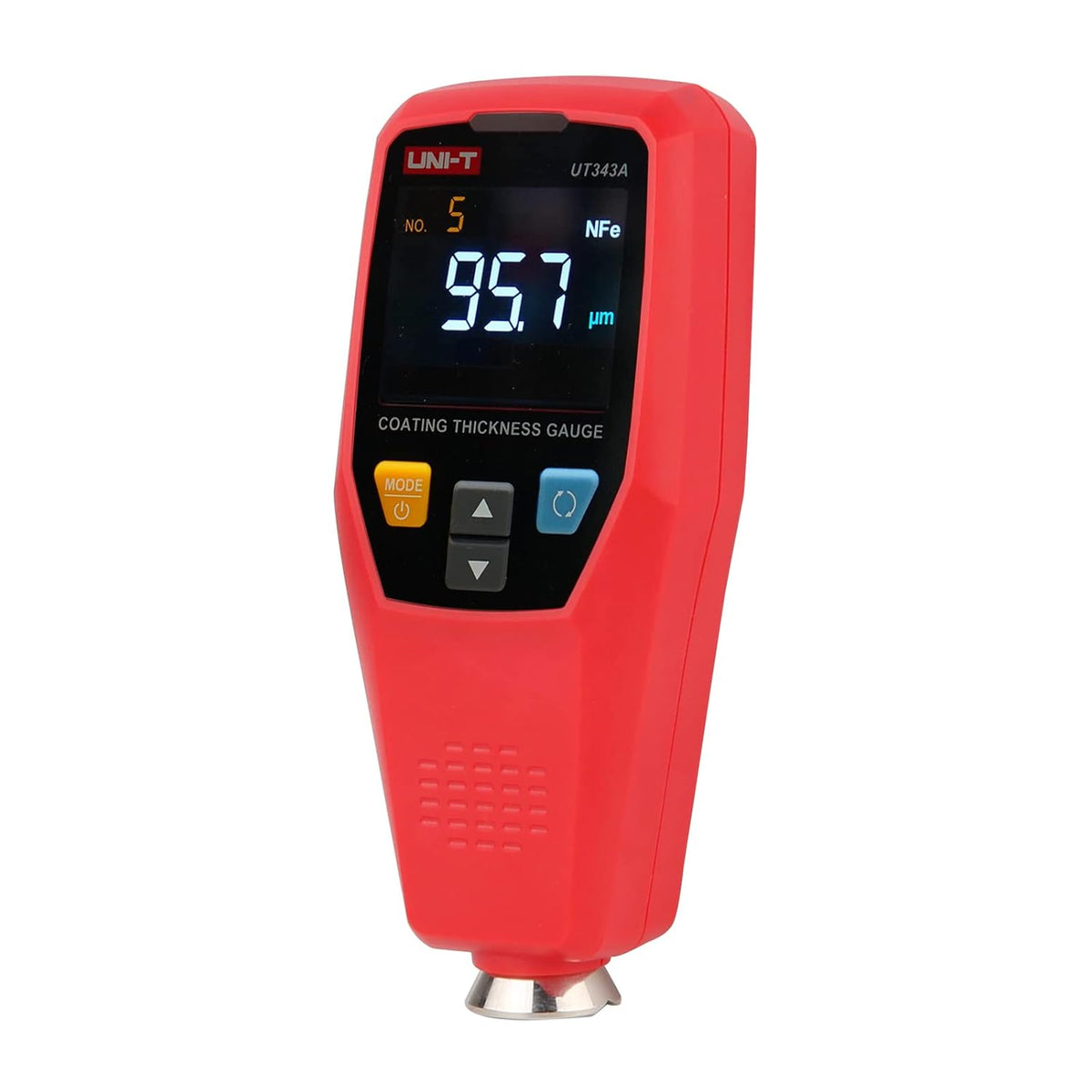

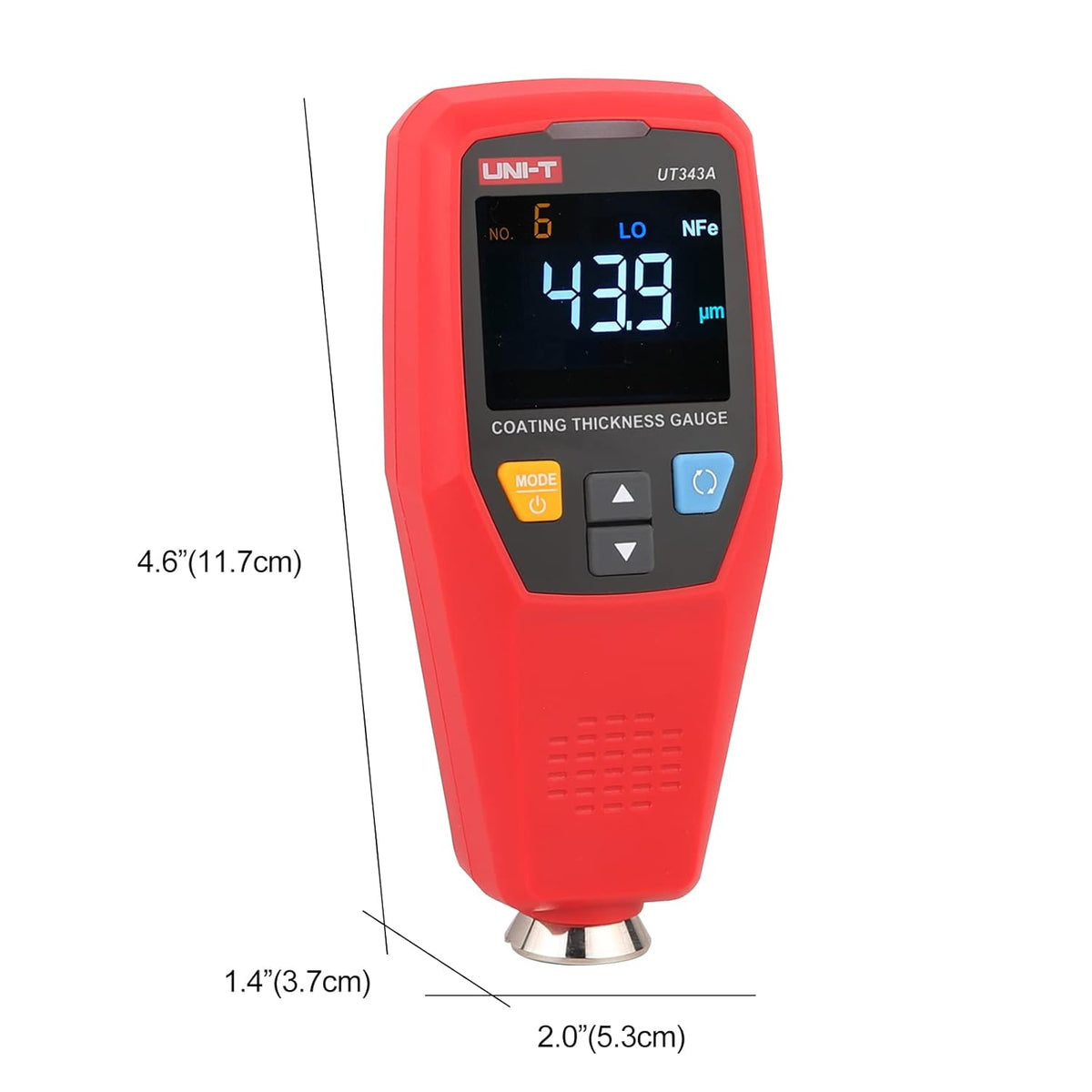

Specifications/UT343A Coating Thickness Gauge
Measuring range. 0~1750um / 0~68.9mil
Accuracy. ±(1+3%H) / ±(0.04%+3%H)
Resolution. 0.1um (0~99.9um); 1um (100~1750um)
Measurement method. Single/Continuous
Measurement mode. Max/Min/Avg
Metal type. Ferrous/ non-ferrous
Features
Display type. EBTN color display.
LCD brightness control
Rotatable screen
Unit conversion
Audio alarm
LED alarm
Buzzer alarm
Data storage. 199 groups
Auto power off
Low battery indicator

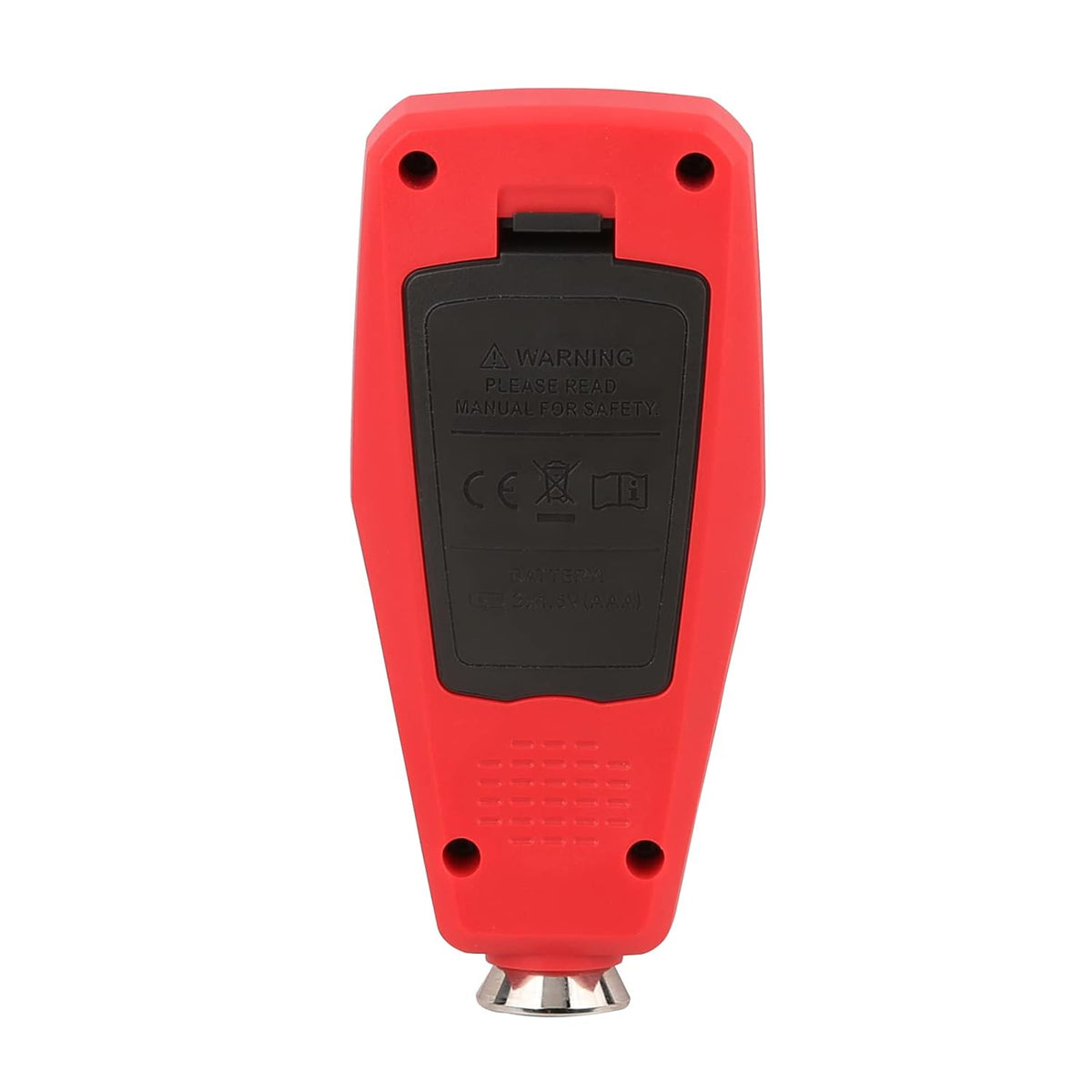

Power. 1.5V battery x 2
Applications
Widely used in automotive, car sales, manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, chemical industry, commodity inspection area and more. Work steadily in workshop and outdoor.
